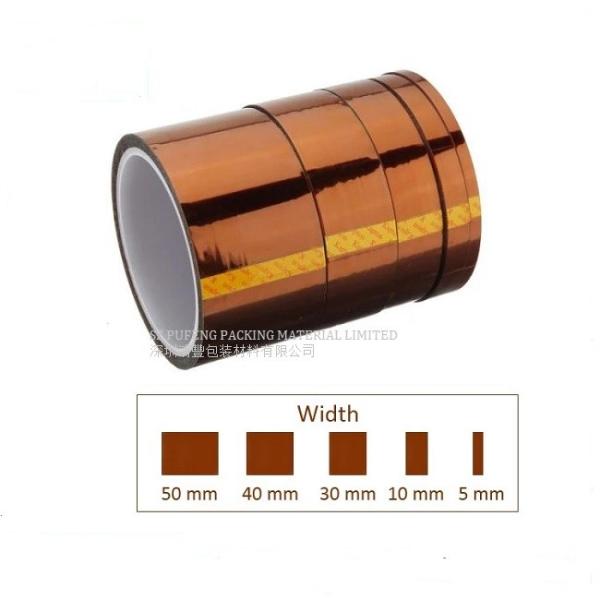

Good price 500mm kaptons gold color high temperature silicone adhesive tape
Polymide silicone adhesive tape is using polymide film as base material and coating silicone adhesive on one side which can resist high temperature in application. This tape is also called "kapton tape".
Specification
Nominal thickness(mm):0.025, 0.04, 0.05,0.075, 0.10, 0.125
Nominal width(mm): 500,914 and customized
Characters
It is Class H insulating material.
This product has excellent physical, chemical, and electrical properties, atomic radiation resistant, solvent resistant, low & high temperature resistant, It performs successfully in the wide range of temperature as low as -452F(-269℃) and as high as +500F(+260℃). Because of its unique excellent properties, it is the ideal choice among many applications.
| Properties | Units | Values |
| 25μm | 40μm | 50μm | 75μm | 100μm |
| Density | kg/m3 | 1420±20 |
| Tension strength | MD | Mpa | ≥135 |
| TD | ≥115 |
| Rupture elongation | MD and TD | % | ≥35 |
| Contraction rate, MD and TD 150° | % | ≤1.0 |
| 400° | ≤3.0 |
| Electrical operating frequency strength | Average value | MV/m | ≥150 | ≥130 | ≥110 |
| Specific value | ≥100 | ≥80 | ≥70 |
| Surface resistively, 200℃ | Ω | ≥1.0X1013 |
| Volume resistively,200℃ | Ω·M | ≥1.0X1010 |
| Relative dielectric factor constant 48-62Hz | | 3.5±0.4 |
| Mdeia loss factor 48-62Hz | | ≤4.0X10-3 |
| Long-term thermal resistant temp. index | | ≥18 |
Application
This product can be used in flexible prinyed circuits and as insulating materials of flat electric cables, electromagnetic wires and motors.
Pictures:
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods with strech film and pe foam for inner package ,then outer package using carton one roll
Q2. What is your terms of payment?
A: T/T etc.
Q3. What is your terms of delivery?
A: FOB, EXW, CIF
Q4. How about your delivery time?
A: Generally, it will take 5 days when we received the first payment.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have random inspection before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
